characteristic:

1. Reasonable design, excellent material selection, high efficiency, low temperature rise, long service life;

2. The utility model simplifies the intermediate transmission structure, facilitates the installation and maintenance, reduces the mechanical energy consumption and saves the electric energy;

3. The excitation force and output are suitable, the starting torque is large, and the synchronous performance is good;

4. Because of the use of stable rotation to produce vibration, low noise;

5. The exciting force can be adjusted only by adjusting the angle between eccentric blocks;

6. Various vibration forms can be synthesized by multiple units to meet various operation requirements.

Service conditions:

Ambient temperature: - 20 ℃ ~ 40 ℃

Altitude: not more than 1000M

Voltage: 380V

Frequency: 50Hz

Insulation class: F

Protection grade: IP55

Working mode: S1

Cooling mode: ic410

Installation direction: horizontal installation

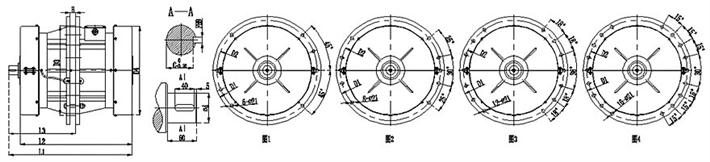

No.	Model	Rated exciting force (kN)	Rated speed r/min	Rated power kW	rated electric current（A)	Installation and boundary dimension											Install the bolt	qualitykg	remarks
						D1	D2	D3	D4	L1	L2	L3	B	C	F	φd
4 pole
1	YZUC- 50-4	50	1460	2.25	5.1	455	415	365	333	550	478	316	24	55	12	60	M20	178	Figure 1
2	YZUC- 75-4	75	1465	3.7	8.42	500	450	400	364	650	578	373	30	55	12	60	M20	249	Figure 1
6 pole
1	YZUC- 15-6	15	960	1.1	2.73	370	330	280	265	557	484	325	24	32	8	36	M20	111	Figure 1
2	YZUC- 25-6	25	960	1.8	4.22	405	365	315	290	570	498	321	24	41	8	41	M20	162	Figure 1
3	YZUC- 35-6	35	975	2.4	5.55	455	415	365	333	590	518	336	24	45	12	50	M20	194	Figure 1
4	YZUC- 50-6	50	975	3.7	8.03	500	450	400	364	650	578	373	30	5	12	0	M20	262	Figure 2
5	YZUC- 75-6	75	980	6	13.69	530	480	430	404	741	669	409	30	55	12	60	M20	368	Figure 2
6	YZUC- 100-6	100	985	7.5	17.3	590	540	480	464	796	724	439	36	55	12	60	M20	510	Figure 3
7	YZUC- 135-6	135	980	9	20.28	700	650	580	574	800	724	435	36	53	18	60	M20	679	Figure 4
8	YZUC- 160-6	160	985	11	24.22	700	650	580	574	851	778	459	36	53	18	60	M20	761	Figure 4
